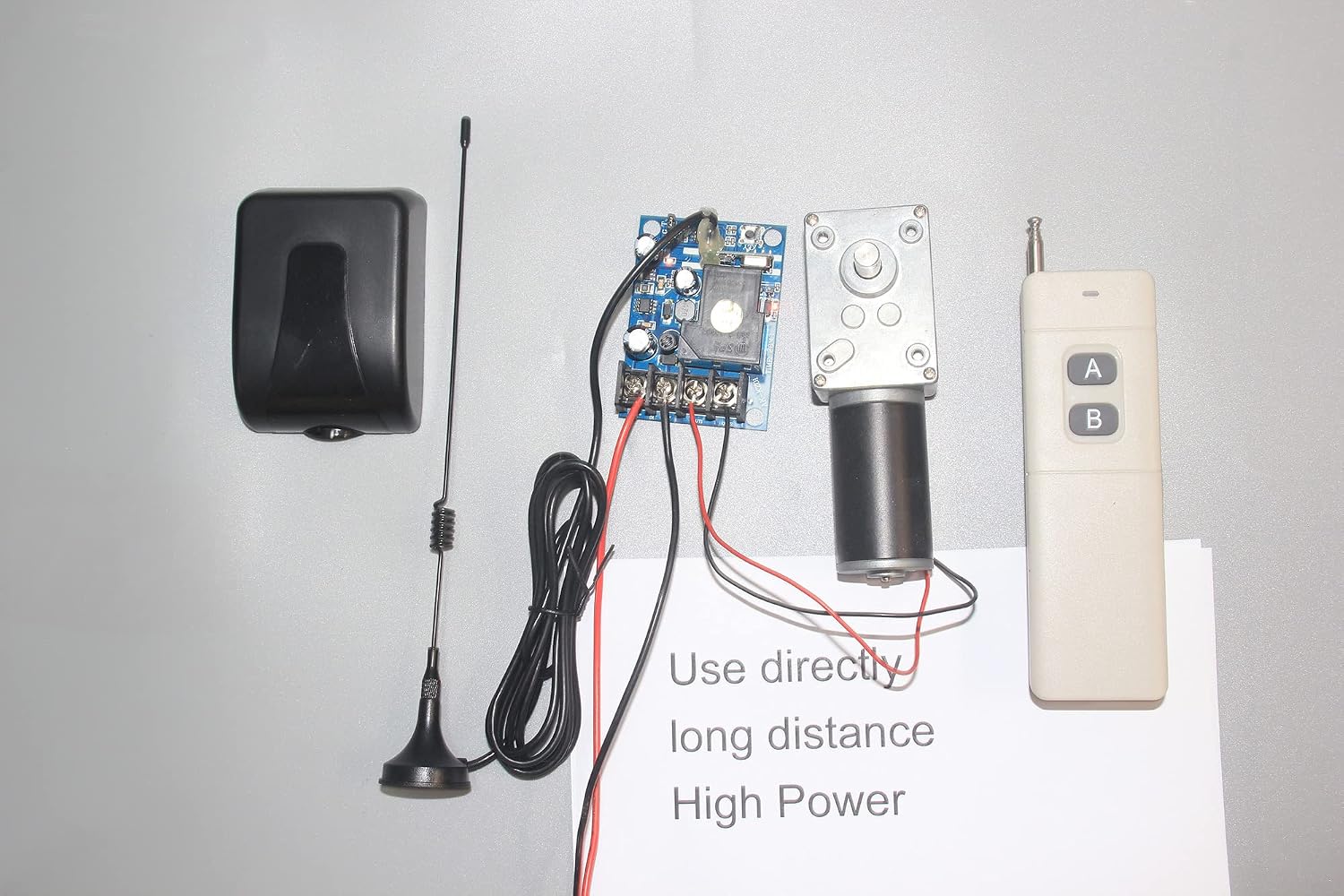

Lejin 500m-1000M DC12V-48V 40A RF Wireless Remote Control Power Switch Radio Controller Transmitter Receiver with Antenna for Industrial, Home & Agricultural Automation

Package Include: 1* Receiver (with cover) 1* Remote Control (with battery, If you need extra remote control , please tell us. ) One year warranty(If you have a problem with your product within a year, we will offer a free replacement service.) Product Description 1. Working Voltage: DC12V-DC48V (DC 12V 14V 15V 16V 17V 18V 19V 20V 21V 22V 23V 24V 36V 48V All is ok) 2. Quiescent current:About 10ma 3. Working Temperature:-40'C- +80'C 4. Receiving Sensitivity :more than -108dBm 6. Output 0V Switching Value use relay COM NO 7.Max Load Current:40A Relay have better Load less than 30A 8.Size:72mm*52mm*26mm Output State: it can be adjusted by the Jumper on the receiver Toggle---------------Press transmitter button A for 1 time , the receiver relay A is ON, press button A again, the receiver relay A is OFF, Latched------------Press transmitter button A, the receiver relay A is ON, Press transmitter button B, the relay A OFF. Learning Method Input 12-48V for the Receiver .Press the Learning Button until the Led indicator OFF. Then press transmitter, the Led indicator flash 3 times, it mean learning successfully. Clearing Code Keeping press the Learning Button on the receiver until the LED indicator OFF to ON , it mean the code have been cleared successfully. notice: Due to product updates, our board may have two versions without jumper cap and with jumper cap. If you receive the one without jumper cap, you need to press the learning button to set the working mode. our products are all set to work mode, you can use it directly. Note: Metal housing will shorten product distance.

• Application: It can be used in industry automation, agriculture automation and home automation, such as factory, house, farm, pasture, vehicle, ship, offshore operation, aerial vehicle, field call, etc. It can remote control equipments on land, water and air, such as remote control lights, sirens, locks, motors, fans, winches, blinds, linear actuators, doors, windows, electric solenoid valves, security alarm, business signs and various devices.
• Wireless control, easy to install. The wireless receiving controller, with high confidentiality, stable performance, low power consumption characteristic, jump line or dial the code switch coding.
• Wireless RF signal can pass through walls, floors, doors or windows. You can use two or more units in the same place.
• You can turn on/ off the receiver with transmitter (remote control) from any place within a reliable distance.
• One year warranty, so you don't have to worry about our quality problems. Reliable control: The receiver only works with the transmitter which use same code. One/several transmitters can control one/several receivers simultaneously. und Range is about 500-1500m (Maximum range of sensor / signal under optimal conditions, or in the open field / line of sight connection.) / When you receive the product, you can use it directly.
